Miniature Coaxial Cable Assembly

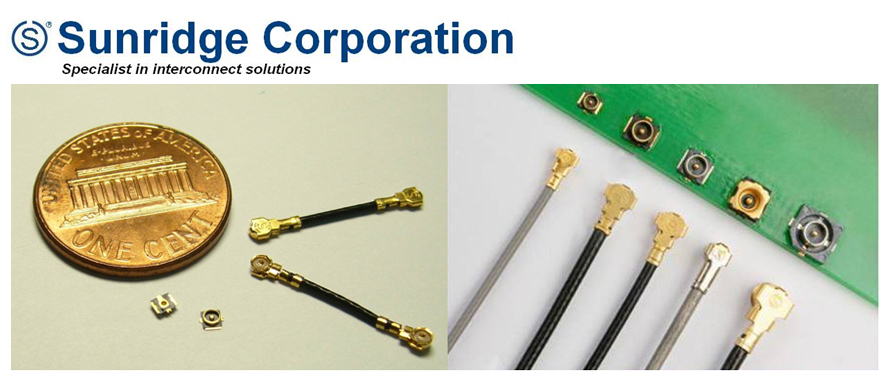

Founded in May 1990, Sunridge Corporation designs, manufactures and markets miniature coaxial components and cable assembly for the global market. Sunridge miniature coaxial series, MC series, offer a comprehensive line of coaxial interconnection products in miniature form factor that feature sturdy mechanical-coupling characteristics and reliable signal/electrical performance. Typically, MC cable assembly can be used inside the enclosure - for directly soldering to the PCB or for board-to-board connection; it can also be system-integrated as a solid signal-transmission line from module or host PCB to a RF connector to be mounted on enclosure panel as its RF interface port.

URC is proud to become representative of Sunridge in Malaysia. For design-in assistance of Sunridge MC components, kindly contact our sales team at sales@urc-ap.com .

MCA-Series

Fully compatible with Murata FSC series,100% Equivalent.

  • Constructed with ultra-thin Teflon wire of supreme grade and interconnect mechanism of rigid structure.
  • MCA series meets high performance benchmark: VSWR response of 1.2 Max from DC to 2GHz, or 1.3 Max from 2GHz to 3GHz.
  • PCB footprint: 3.5 mm square; mated height: 3.1mm

MCB - Series

Fully compatible with Hirose U.FL and I-PEX MHF series, 100% Equivalent.

  • Teflon Cable: Silver plated center conductor with Teflon dielectric and jacket.
  • Application-specific cable options: from 0.81mm OD flexible cable ideal for intricate routing inside a crammed package, to 1.24mm or 1.32mm OD cable that delivers RG178 performance with space and weight saving.
  • Sturdy Connection: Lead-in and interlock features among mating pair ensure solid coupling.
  • PCB footprint: 3.1mm x 3.0mm; mated height: 2.5mm or 2.0mm.

MCC - Series (6GHz RF Switch Connector)

Fully Compatible with Murata SWD series, 100% Equivalent.

  • Provides a cost effective test point on production PCBA for antenna circuit performance verification.
  • Insertion loss: 0.2dB max, VSWR: 1.3 max, Isolation factor: 20 dB min (0 to 3 GHz); 15 dB min (3 to 6 GHz).
  • PCB footprint: 3.0mm x 3.0mm; mated height: 1.8mm

MCD – Series

Fully compatible with Hirose W.FL series, 100% Equivalent.

  • Teflon Cable: Silver plated center conductor with Teflon dielectric and jacket of 0.81mm or 0.91mm OD to make for intricate cable routing in a extremely limited space.
  • Sturdy Connection: Lead-in and interlock features among mating pair ensure solid coupling.
  • PCB footprint: 2.0mm x 2.0mm; mated height: 1.55mm.

MCE – Series

Fully Compatible with Radiall IMP board-to-board RF interconnection, 100% Equivalent.

  • Application: for 50 OHM, up to 6 GHz
  • Space Economy: 3.2mm x 4.6mm foot print
  • Stacking Height: 2.0mm or 1.5mm versions available.
  • Protection shield: to minimize the exposure - and handling-induced damage - of spring contact, and to prevent it from overstrain by excess weight or push down.

MCF - Series

Fully Compatible with Murata GSC series; 100% Equivalent

  • Space Economy: 3.0mm x 3.0mm PCB footprint, mated height of 2.0 mm
  • Teflon Cable: silver plated center conductor with Teflon dielectric and jacket of 0.81mm OD to facilitate intricate cable routing where space is limited.
  • Versatility: other cable types and a variety of MCF-to-RF cable assy are available
  • PCB socket: Molded construction in one integral piece. High temp plastic housing for IR reflow.
  • Strength: Lead-in and interlock features make for easy insertion and sturdy engagement among cable connector and PCB socket.
  • Accessory: Assembly tool for easy insertion and extraction. MCF-SMA adapter for connection to network analyzer.

MCG - Series

Fully Compatible with Hirose H.FL series; 100% Equivalent

  • Space Economy: 4.5mmx5.0mm footprint, 3.0mm mated height
  • Cable Connector: designed for study mating with PCB socket.
  • Teflon Cable: silver plated center conductor and braid, Teflon dielectric and jacket. Cable options available for requirements in routing flexibility, structural strength, or double-shielding.
  • PCB socket: On-piece integral molded construction. High temp plastic housing for IR reflow. Protection for mated cable head.
  • Strength: Lead-in and interlock features make for easy insertion and sturdy engagement among mating components.
  • Accessory: Insertion/extraction tool for open space or recessed area. SMA adapter for connection to network analyzer.

MCH – Series

Fully Compatible with Murata HSC series; 100% Equivalent

  • Space Economy: 2.0mm x 2.0mm PCB footprint, mated height of 1.2 mm
  • Teflon Cables: Silver plated center conductor, Teflon dielectric and jacket
  • PCB socket: Integral molded construction ensures product reliability.
  • Sturdy connection: Lead-in and interlock features among mating pair ensure solid coupling.
  • Accessory: Insertion/Extraction tool, test adapters for connection to MCH cable head and PCB connector.
